Toyota Hilux Double Cab / SW4 + 7 Airbags (from 01/07/2019) VIN 8AJKX3CD9L201200 (Test 2019)

31.63 points / 34.00

FRONT

SIDE

POLE

Protection

GOOD

ADEQUATE

MARGINAL

WEAK

POOR

Passenger compartment structure	ESTABLE
Side impact protection (structural)	SÍ
Voluntary UNECE95 test	Performed - Approved

COMMENTS:

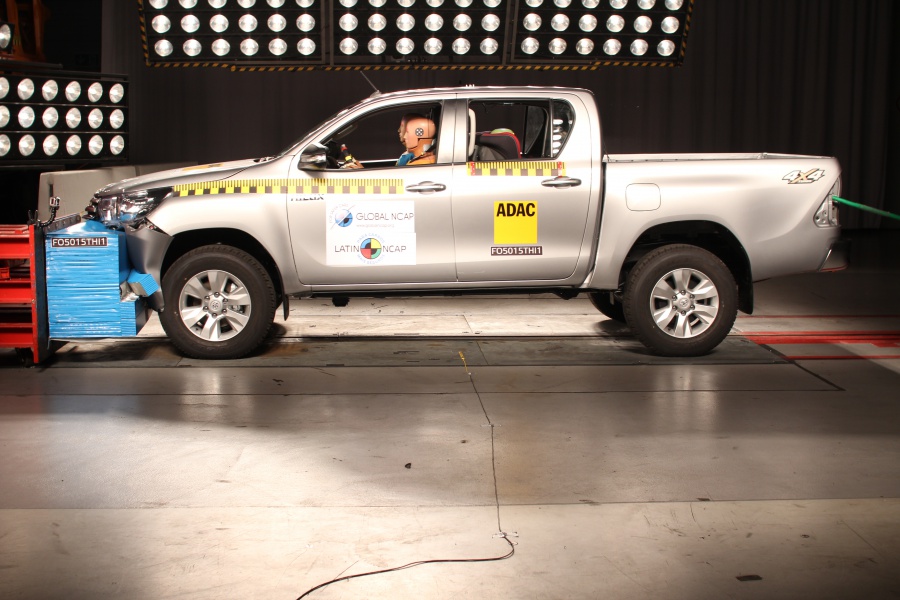

Frontal impact performed end of 2015: The protection offered to the driver and passenger head and neck was good. Driver and passenger chest received adequate protection from the restraint systems. Driver and Passengers knees showed good protection. Driver tibias showed adequate protection, and Passenger’s tibias showed good and adequate protection. Footwell area was rated as stable and showed insignificant deformation. Feet protection is good. The bodyshellwas rated as stable. Side impact: The car offered good protection to head, thorax, abdomen and pelvis. Side Pole Impact: The side and curtain airbags offered good protection to the head and pelvis, and marginal protection to the abdomen and thorax. ESC: The ESC was tested and its performance met the regulatory requirements of Latin NCAP. The car offers 2 frontal SBR. All of the above explain the 5 stars for adult occupant protection.

See protocol

44.25 points / 49.00

Dynamic test score (max. 24.00)	CRS installation score (max. 12.00)	Vehicle assessment score (max. 13.00)
23.25	12.00	9.00

Occupant	Child restraint system	Dynamic test score (max. 12.00)	CRS type	Installation	Position
18-month-old child	Takata Midi	Frontal: 7.25 (max. 8.00) Side: 4.00 (max. 4.00)	0+/1	ISOFIX/LEG	Rearward facing
3-year-old child	Takata Midi	Frontal: 8.00 (max. 8.00) Side: 4.00 (max. 4.00)	0+/1	ISOFIX/TT	Rearward facing

CRS installation assessment
		2nd row
Reference list		LEFT	CENTRE	RIGHT
Group 0+	Peg Perego Viaggio Switchable	Pass	Exempt	Pass
Group 0+	Roemer Baby Safe	Pass	Exempt	Pass
Group 0+	Bébé Confort Streety Fix / Maxi Cosi Citi SPS	Pass	Exempt	Pass
Group I	Peg Perego Viaggio Switchable FWF	Pass	Exempt	Pass
Group I	Graco Cadeira Nautilus FWF	Pass	Exempt	Pass
Group II/III	Burigotto Multipla 1,2,3	Pass	Exempt	Pass
Group II/III	Graco Cadeira Nautilus	Pass	Exempt	Pass

Manufacturer
		LEFT	CENTRE	RIGHT
Q1.5	Takata Midi	Pass	Exempt	Pass
Q3	Takata Midi	Pass	Exempt	Pass

COMMENTS:

The child seat for the 3 year old child was installed rearward forward facing using the ISOFIX anchorages and support leg and was able to prevent forward movement during the frontal impact beyond the excursion limits while it offered good protection. The Q1.5 was installed rearward facing using ISOFIX anchorages and support leg and its protection was good during the frontal impact. Side impact: both child dummies were well protected in the side impact. All CRSs that were assessed for installation pass. The marking and instructions in the car in relation to rearward facing CRS in the passenger seat met Latin NCAP requirements. ISOFIX marking also met Latin NCAP requirements. The passenger airbag disabling is possible and manual. The Hilux offers 3 point belts in all seating positions as standard, and all of them meeting technical international standards. It also offers ISOFIX anchorages with top tether in both rear outboard seating positions as standard. All the above explains the 5 stars for Child Occupant protection.

See protocol

Car information
4 door pick-up	2019
Argentina and Thailand	2323 kg
Latin NCAP market

Safety equipment
Driver frontal airbag	YES
Front passenger frontal airbag	YES
Side head airbags	YES
Passenger side head airbags	YES
Side body airbags	Chest
Passenger side body airbags	Chest
Driver knee airbag	YES
Front belt pretensioners	YES
Passenger front belt pretensioners	YES
Seat belt reminder	YES
ISOFIX	YES
Anti-lock braking system	YES
ESC (UN13 or GTR8)	YES
